Silvera Pro

Silvera Pro Restroom Manufacturer

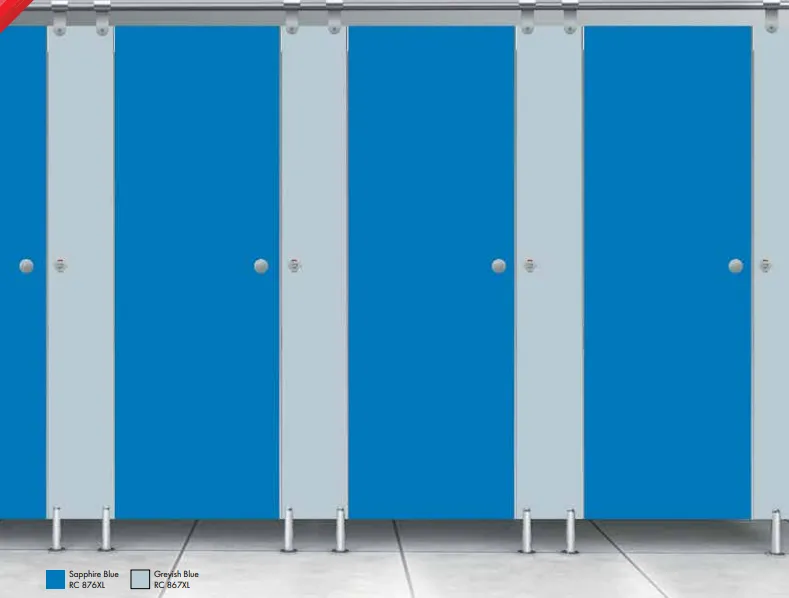

The Silvera Pro series is an advanced variant of the highly popular Silvera restroom cubicles, offering an improved combination of elegance, performance, and user-friendly design. This floor-mounted model is reinforced with a circular stainless steel top rail and adjustable support legs, allowing for a bottom clearance of 100 mm to 150 mm. Known for its clean lines and smooth-closing door mechanism, Silvera Pro delivers a refined restroom experience, supported by accessories like an occupancy indicator, stainless steel thumb turn, and other essential fixtures. Available in elegant tones such as Sapphire Blue RC 876XL and Greyish Blue RC 867XL, this model merges durability with upscale aesthetics, making it ideal for clients seeking premium quality without compromise. Silvera Pro redefines premium restroom cubicles by blending style, strength, and convenience in one smart solution.

  • Description
  • Hardware & Accessories
  • Technical Specification
  • Download Brochure

Silvera Pro is an ideal solution for commercial complexes, high-end corporate facilities, educational institutions, and luxury public environments. It stands out for its sleek finish, low maintenance requirements, and efficient functionality—attributes that appeal to both architects and facility managers. The circular stainless-steel components make sure long-term resilience and a modern appearance, while the thoughtful design simplifies cleaning and improves hygiene.

Door Stopping Mechanism

Stainless Steel made door stopper profiles, with rubber linings for dampening the noise while door closing, will be provided at the vertical ends of the pilasters.

Dimensions
Width Width Disabled Door Width Door Width Disabled Depth Total Height from Ground Bottom Gap
900 1500 610 900 1500-1800 1995-2003 100-150
“CubiQ” Restroom Cubiles – Detail Specification
SCOPE OF WORK
Supply and installation of “CubiQ” – Silvera Pro series cubicles of width and depth as per specifications/site drawings.
ITEM DESCRIPTION
Made from solid grade High Pressure Laminate (HPL) compact panel as per IS:2046 and EN438- NEMA LD3 - 2005, Green label and CE Green Guard Certification and manufactured under high specific pressure > 5 MPa and temperature 120°C with bunch of kraft papers, impregnated with thermosetting phenolic resin and decorative papers made of cellulose fiber, impregnated with thermosetting melamine resin which provide superior anti bacterial, heat, abrasion, chemical, scratch, impact, graffiti and moisture resistance properties.. Panels have a black core which presents a distinctive black edge.
DOORS
All doors will be of single colour and made of 12 mm thick HPL compact panel. Each door will be supported by 3 stainless steel made hinges affixed to the pilasters. Stainless steel made coat hook and door knob are provided with each door.
PILASTERS
All pilasters will be made of 12 mm thick HPL compact panel and completed with stainless steel thumb-turn lock set (comprised of thumb-turn and occupancy indicator). SS-304 door stopper profiles with rubber linings for dampening the noise while door closing will be provided at the vertical ends of the pilasters. Pilaster will be anchored to the floor using stainless steel made adjustable legs. The bottom gap is 150mm
DIVIDERS
All intermediate partitions or dividers will be made of 12 mm thick HPL compact laminate panels. They are affixed with SS-304 made U-channel at their ends for ultimate stability of the system. Design No. as specified by Arch./Engr. in suede finish. Size of panels to be as per drawing.

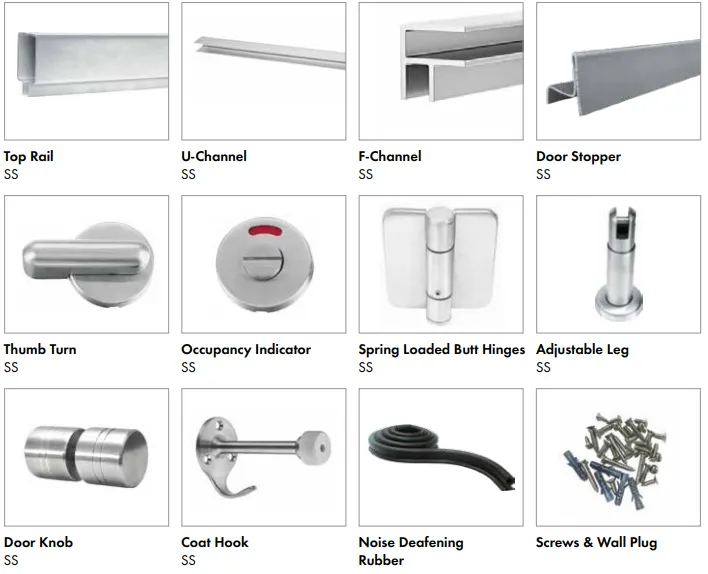

Profile (Stainless Steel grade - 304)
1. Top rail is made of stainless steel grade 304 with circular cross section (Diameter 32 mm). Surface finish will be brush type.
2. Tubular panel holder is made of stainless steel grade 304. Surface finish to be brush type.
3. Wall bracket is made of stainless steel grade 304. Surface finish to be brush type.
4. 90° Corner connecter is made of stainless steel grade 304. Surface finish to be brush type.
5. Corner joinery (F-Channel) section made from stainless steel grade 304. Surface finish to be brush type.
6. Wall joinery (U-Channel) section with hamming profile made from stainless steel grade 304. Surface finish to be brush type.
7. Door Stopper section with hamming profile made from stainless steel grade 304. Surface finish to be brush type.


Hardware (Made from SS316)
1. Adjustable Palm Design Pedestal Footing of base diameter 60 mm made from stainless steel grade 316 giving a clearance height of 150 mm. Surface finish to be lacquer/brush type.
2. Spring loaded butt hinges made from stainless steel grade 316. Surface finish to be matt type. Covers to be lacquer/bruch coated.
3. Coat hook with rubber stopper made from stainless steel grade 316. Surface finish to be lacquer/brush type.
4. Round Door knob diameter 38 mm with grooves for better hand grip made from stainless steel grade 316. Surface finish to be lacquer/brush type.
5. Rotating thumb-turn locking system with privacy indicator made from stainless steel grade 316. Surface finish to be lacquer/brush type.

Accessories
1. Anti-noise rubber padding.
2. SS grade 304 screws.
3. Anti-rotation nylon polyamide grade 6 expandable wall plugs.
NYLON ONEX SERIES CUBICLES: STD. SIZES
((W x D x H): 900 mm x 1500 mm x 2003 mm, (Height is including 150 mm gap from bottom) Door Width - 610 mm
Additional information
Dimensions 900 cm

Technical & Innovation-Oriented

Scratch Resistant

Graffiti Resistant

Termite Resistant

Water Resistant

Easy to Clean

Impact Resistant

Anti-Bacterial

Cigarette Burn Resistant

Fire Resistant

Abrasion Resistant

Wide Choice of Colours

Chemical Resistant

Flexibility of Design and Space Saving

Fast Colours and Durable

Less Volatile Organic Compounds (VOC) Emission
