SCOPE OF WORK
Supply and installation of “CubiQ” – Top Hung series cubicles of width and depth as per specifications/site drawings. |
ITEM DESCRIPTION
Made from solid grade High Pressure Laminate (HPL) compact panel as per IS:2046 and EN438- NEMA LD3 - 2005, Green label and CE Green Guard Certification and manufactured under high specific pressure > 5 MPa and temperature 120°C with bunch of kraft papers, impregnated with thermosetting phenolic resin and decorative papers made of cellulose fiber, impregnated with thermosetting melamine resin which provide superior anti bacterial, heat, abrasion, chemical, scratch, impact, graffiti and moisture resistance properties.. Panels have a black core which presents a distinctive black edge. |
DOORS
All doors will be of single colour and made of 12/18 mm thick HPL compact panel. Each door will be supported by 3 stainless steel made hinges affixed to the pilasters. Stainless steel made coat hook and door knob are provided with each door. |
PILASTERS
All pilasters will be made of 18 mm thick HPL compact panel and completed with stainless steel thumb-turn lock set (comprised of thumb-turn and occupancy indicator). SS-304 door stopper profiles with rubber linings for dampening the noise while door closing will be provided at the vertical ends of the pilasters. Pilaster will be anchored to the floor using stainless steel made fix shoe box. The bottom gap is 100mm. |
DIVIDERS
All intermediate partitions or dividers will be made of 18 mm thick HPL compact laminate panels. They are affixed with SS-304 made U-channel at their ends for ultimate stability of the system. Design No. as specified by Arch./Engr. in suede finish. Size of panels to be as per drawing. |
Profile (Stainless Steel grade - 304)
1. Corner joinery (F-Channel) section made from stainless steel grade 304. Surface finish to be brush type.
2. Wall joinery (U-Channel) section with hamming profile made from stainless steel grade 304. Surface finish to be brush type.
3. Door Stopper section with hamming profile made of stainless steel grade 304. |
Hardware (Made from SS316)
1. Fixed front panel to be anchored to floor with L Bracket of SS 316 and covered with SS 316 grade box-type plate from all directions with 100 mm clear height from ground. Surface finish to be matt type.
2. Spring loaded butt hinges made from stainless steel grade 316. Surface finish to be matt type. Covers to be lacquer / brush coated.
3. Coat hook with rubber stopper made from stainless steel grade 316. Surface finish to be lacquer / brush type.
4. Round Door knob diameter 38 mm with grooves for better hand grip made from stainless steel grade 316. Surface finishto be lacquer / brush type.
5. Rotating thumb-turn locking system with privacy indicator made from stainless steel grade 316. Surface finish to be lacquer / brush type.
|

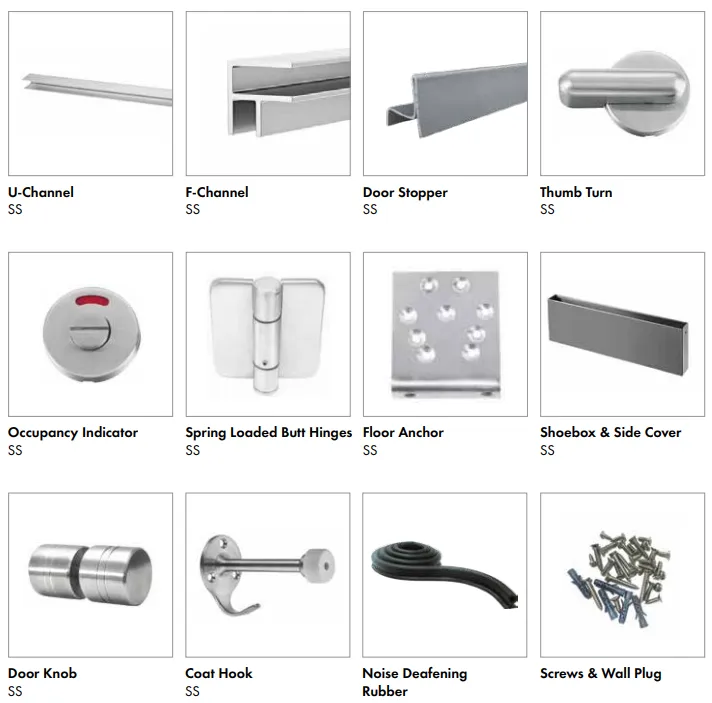

Accessories
1. Anti-noise rubber padding.
2. SS grade 304 screws.
3. Anti-rotation nylon polyamide grade 6 expandable wall plugs. |
PREMIA 18MM SERIES CUBICLES: STD. SIZES
(W x D x H): 900 mm x 1500 mm x 1840/2100 mm, (Height is including 100 mm gap from bottom) Door Width - 610 mm |
