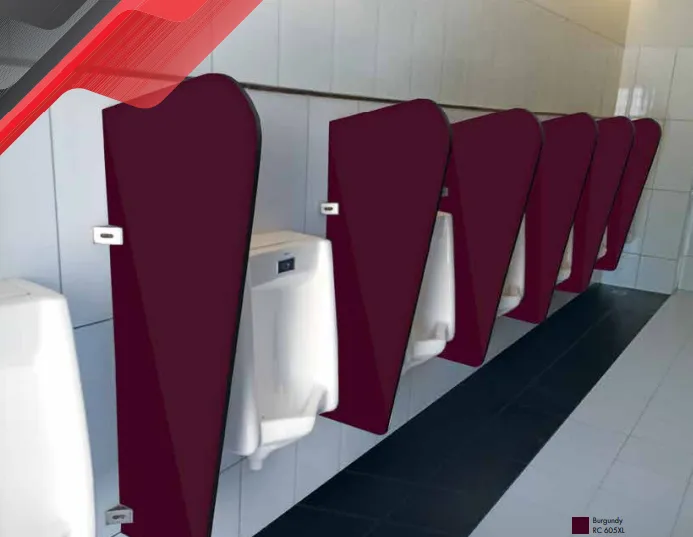

CubiQ’s Urinal Privacy Panels (UPP) are precision-engineered to elevate privacy, hygiene, and comfort in men’s restrooms. Designed as separators between adjacent urinals, these panels play a crucial role in maintaining user discretion and improving the overall restroom experience. Manufactured using durable materials like polyamide grade 6 (nylon) or stainless steel, the UPP system ensures long-lasting performance, even in high-footfall areas. The panels are crafted for easy cleaning and minimal maintenance, making them a highly practical addition to commercial, public, and institutional restrooms.

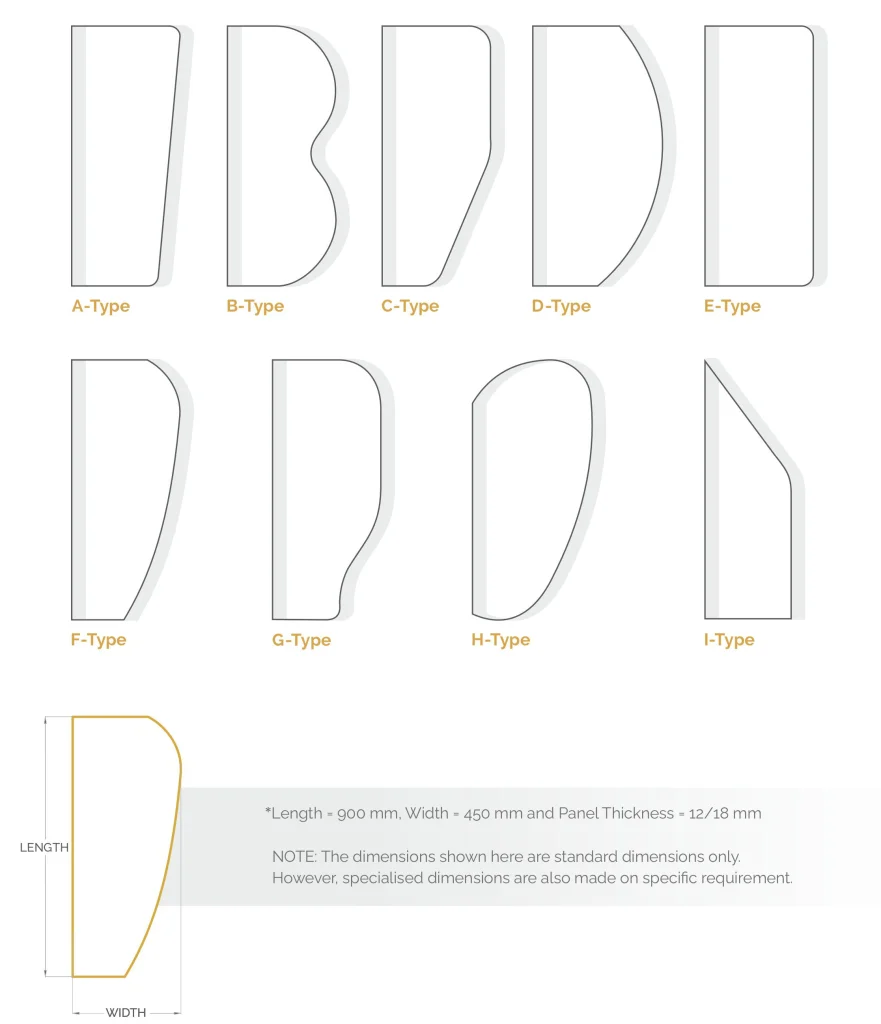

To cater to varied architectural needs and design aesthetics, UPPs are available in nine distinctive shapes: A-Type through I-Type, each offering a unique silhouette that enhances both visual appeal and functional separation. With standard dimensions of 900 mm in length, 450 mm in width, and a panel thickness of 12/18 mm, these panels can also be customised to fit specific project requirements. Whether your priority is enhanced privacy, seamless integration, or a stylish upgrade, CubiQ’s Urinal Privacy Panels offer a reliable and sophisticated restroom solution.
| TOILET CUBICLES AND ASSOCIATED WORKS |
|---|
| SCOPE OF WORK Providing & fixing Restroom UPP in 12mm thickness (standard dimension of 450mm width x 900mm Height) Panel starts 500-600mm above ground level. |
| COMPACT LAMINATE 12mm thick Compact Laminate made as per IS: 2046 and as per fire retardant EN438 (Section 30 CGS) standard. These panels are 12mm thick solid compact laminates that are heat, bacteria, water, chemical, scratch, and impact-resistant, as per the approved texture/shade. The product should have Green Guard Certificate. |

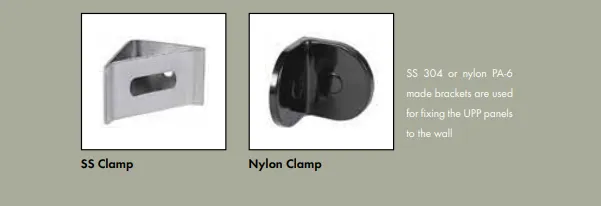

| ACCESSORIES Urinal Privacy Panel will be fixed with stainless steel Grade-316 right angle bracket, i.e. (a) Right Angle Brackets, (b) Screws, and (c) Wall Plugs. |
| FIXING DETAIL All screws will be of Grade-304 in stainless steel & panel will be supported by right angle brackets to hold the panels with a clearance height upto 500-600mm. |
| Standard dimension of 450mm Width x 900mm Height. All aspects specified by the manufactures, CubiQ Restroom UPP or equivalent. |
| Dimensions | 900 cm |
