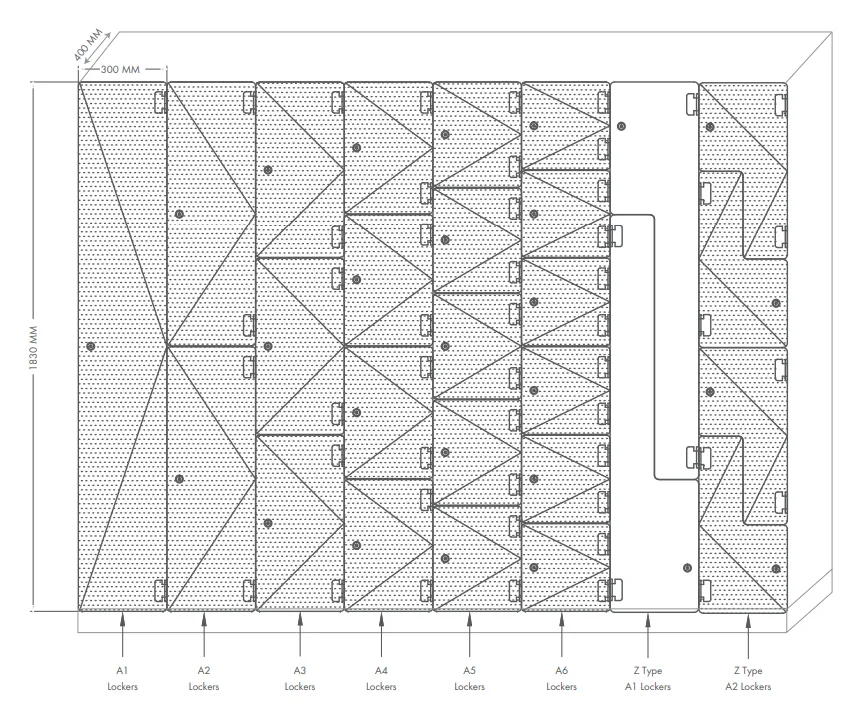

| A1 |
Single door locker unit. Conventional style with hat and hanging space.
Any application. |
1400 |
1830 |
| A2 |
2 door locker unit. Hanging rail. Any application. |
800 |
917 |
| A3 |
2 door locker unit. Hanging rail. Any application. |
NA |
610 |
| A4 |
4 door locker unit. Bag storage. |
NA |
457 |
| A5 |
5 door locker unit. Small bag and personal items. |
NA |
366 |
| S |
2 door interlocking type. Extra long hanging length. Suitable for:
Uniforms and dresses. Designed for Hospital staff, nurses etc. |
1000 |
1045 |
| C |
Single door locker unit. For use on high plinth. Hanging and bad
storage. |
NA |
1380 |
| 3 |
Open storage compartment in 3 shelves. |
NA |
460 |
| B |
Bench attached to locker. |
NA |
NA |
MATERIALS
All accessories shall be made of SS and Aluminium. The door, side & back and top & bottom shall be High-Pressure Laminates (HPL) Compact Board. HPL compact boards are manufactured from sheets of special kraft and décor paper, impregnated with thermosetting synthetic resins which are together under heat and high pressure (110 Kg/cm2 at a temperature of about 150°C). HPL compact board has laminates on both sides with suede finishes melamine. The performance of the board is tested according to Standards EN438 - 4 (Equivalent to Indian standard IS-2046) (Boiling Water, Fire Rate, Impact, Stain, and Scratch). |
DOORS
All doors shall be made of a 9 mm or 12mm thick HPL compact panel. |
SIDE AND BACK DIVIDER
All doors shall be of 3 mm thick HPL compact board. |
TOP AND BOTTOM DIVIDER
All doors shall be of 9 mm thick HPL compact board. |
HARDWARE AND ACCESSORIES
• Each restroom locker system will be equipped with the following accessories Standard - Aluminium + SS.
• Lockset.
• Hanger Rod (If required).
• SS Hinges.
• Aluminium Interlocking supporting frame. |
SERVICE INCLUSIONS
1. Identification of the project requirement 2. Design advisory 3. Product and solution proposal 4. Specification
writing 5. Project estimation 6. CAD layout drawings 7. Delivery 8. Installation 9. After sales support 10. Warranty
11. Maintenance 12. Complementary products and services |
TURN-KEY SOLUTIONS
Full service concept is your assurance for a successful completion and peace of mind in project
development. |
