Cb Doorz

Cb Doorz Restroom Manufacturer

CB Doorz by CubiQ is a practical and durable solution designed specifically for existing brick cubicle setups and retrofit restroom projects. Made from 12mm thick High-Pressure Laminate (HPL) compact boards, these doors serve as a modern upgrade over traditional wooden doors, offering superior hygiene, easier maintenance, and improved ventilation through a standardized 150 mm bottom floor clearance. Each door is equipped with essential accessories including a coat hook, door knob, and a WC lock. For added functionality and user comfort, CB Doorz includes door stopper channels with rubber lining to ensure quiet, smooth closing. Installation is done using robust aluminium D-shaped poles affixed to both sides of the brick wall, with the doors mounted via three secure hinges. The opening direction can be customized (left or right) but is available only in an inward configuration.

  • Description
  • Hardware & Accessories
  • Construction
  • Technical Specification
  • Download Brochure

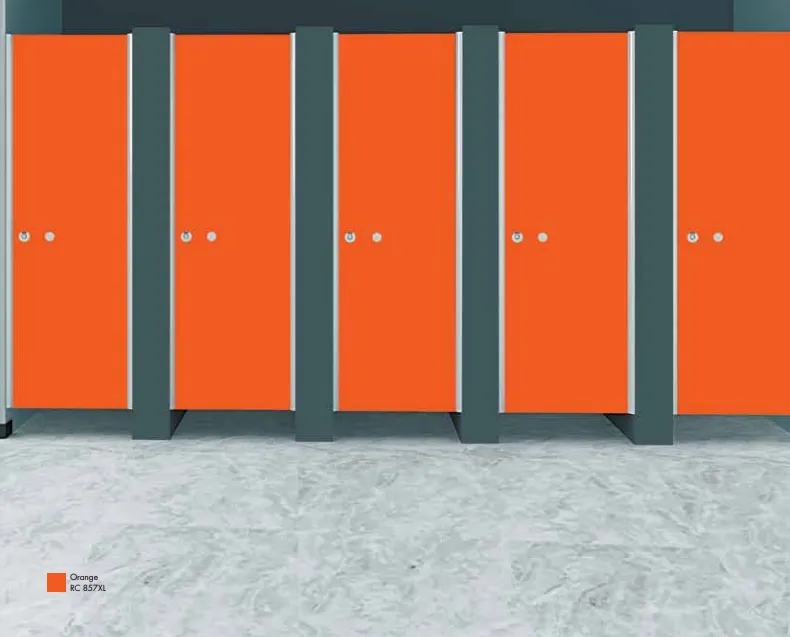

CB Doorz is an excellent choice for commercial buildings, institutional facilities, and public spaces where existing brick cubicles need an upgrade without full system replacement. With its dry installation system, it avoids the issues of moisture-related deterioration common with traditional wooden doors. Available in vibrant finishes like Orange RC 857XL and a wide variety of other colors and patterns, CB Doorz allows facility managers and architects to maintain visual consistency with existing restroom interiors. It’s a smart, cost-effective solution that blends modern functionality with retrofit flexibility.

  • Each door is equipped with one coat hook, one door knob and one WC lock
  • Door opening provision is available in inside direction only. Opening direction of door can be left or right. door stopper channels, with provision of rubber lining, are provided for the noiseless closing of door
  • Aluminium made D-shaped poles are fixed on the brick wall on both sides. Doors are mounted on the D-shaped poles with the help of 3 hinges. Bottom gap of 150 mm is provided between door and floor
Dimensions
Door Width Door Width Disabled Total Height from Ground Bottom Gap
600 – 750 900 1980 or 2100 100-150
“CubiQ” Restroom Cubiles – Detail Specification
SCOPE OF WORK
Supply and installation of “CubiQ” - Onex series cubicles of width and depth as per specifications/site drawings.
DOORS
Made from solid grade compact high pressure laminate as per IS:2046 manufactured under high specific pressure >5 MPa and temperature 120°C with bunch of kraft papers, impregnated with thermosetting phenolic resin and decorative papers made of cellulose fiber, impregnated with thermosetting melamine resin which provides superior anti bacterial, heat, abrasion, chemical, scratch, impact, graffiti and moisture resistance properties. Panels have a black core which presents a distinctive black edge. Panel thickness 12 mm. Design No. as specified by Arch./Engr. in suede finish. Size of panels to be as per drawing.

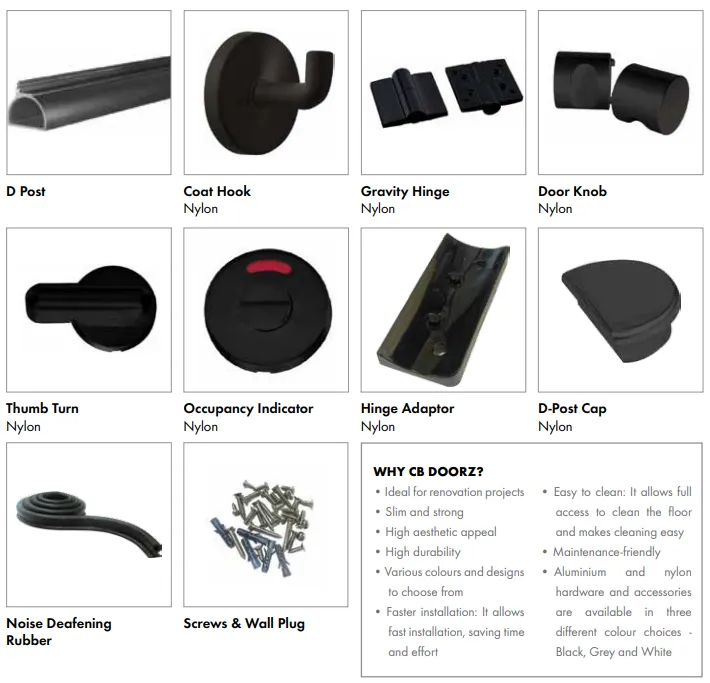

HARDWARE AND ACCESSORIES
1. Specially designed D-shape wall mounted pole made from extruded grade aluminium alloy 6063/HE9/T-6 and epoxy powder coated (colour as per specifications) for surface protection.
2. Matching profile and colour nylon polyamide-6 caps to cover Aluminium poles
3. Self closing hinges (Gravity mechanism) made from nylon polyamide grade 6. Colour to be as per specifications
4. Round coat hook with base diameter 53 mm made from nylon polyamide grade 6. Colour to be as per specifications
5. Round door knob diameter 52 mm with thumb-recess made from nylon polyamide grade 6. Colour to be as per specifications.
6. Latch locking system with privacy indicator made from nylon polyamide grade 6. Colour to be as per specifications
7. Anti-noise rubber lining
8. SS grade 304 screws
9. Anti-rotation nylon polyamide grade PA-6 expandable wall plugs
10. The work shall complete as per drawing , under supervision of engineer in-charge and company experts.
CB DOORZ SERIES CUBICLES: STD. SIZES
(W x H): 750mm X/900mm x 1980 mm/2100 mm, (Height is including 150 mm gap from bottom)

Technical & Innovation-Oriented

Scratch Resistant

Graffiti Resistant

Termite Resistant

Water Resistant

Easy to Clean

Impact Resistant

Anti-Bacterial

Cigarette Burn Resistant

Fire Resistant

Abrasion Resistant

Wide Choice of Colours

Chemical Resistant

Flexibility of Design and Space Saving

Fast Colours and Durable

Less Volatile Organic Compounds (VOC) Emission
