SCOPE OF WORK

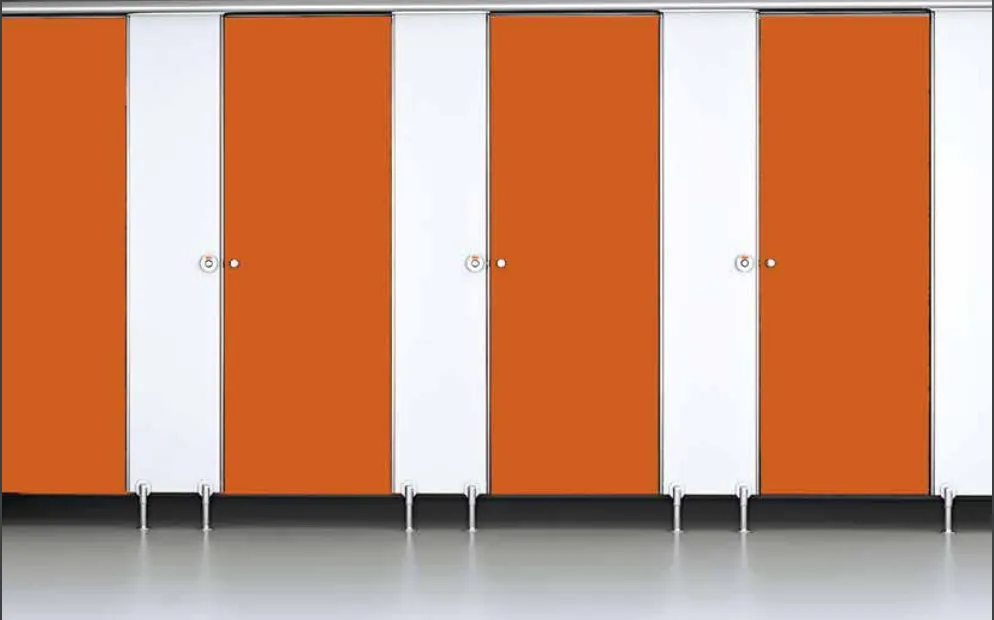

Supply and installation of “CubiQ” - Onex series cubicles of width and depth as per specifications/site
drawings. |
ITEM DESCRIPTION
Made from solid grade High Pressure Laminate (HPL) compact panel as per IS:2046 and EN438- NEMA LD3 -
2005, Green label and CE Green Guard Certification and manufactured under high specific pressure > 5
MPa and temperature 120°C with bunch of kraft papers, impregnated with thermosetting phenolic resin and
decorative papers made of cellulose fiber, impregnated with thermosetting melamine resin which provide
superior anti bacterial, heat, abrasion, chemical, scratch, impact, graffiti and moisture resistance
properties.. Panels have a black core which presents a distinctive black edge. |
DOORS
All doors will be of single colour and made of 12 mm thick HPL compact panel. Each door will be
supported by 3 stainless steel made hinges affixed to the pilasters. Nylon made coat hook and door knob
are provided with each door. |
PILASTERS
All pilasters will be made of 12 mm thick HPL compact panel and completed with stainless steel
thumb-turn lock set (comprised of thumb-turn and occupancy indicator). Aluminium door stopper profiles
with rubber linings for dampening the noise while door closing will be provided at the vertical ends of
the pilasters. Pilaster will be anchored to the floor using nylon made adjustable legs. The bottom gap
is 150mm |
DIVIDERS
All intermediate partitions or dividers will be made of 12 mm thick HPL compact laminate panels. They
are affixed with Aluminium made U-channel at their ends for ultimate stability of the system. Design No.
as specified by Arch./Engr. in suede finish. Size of panels to be as per drawing. |

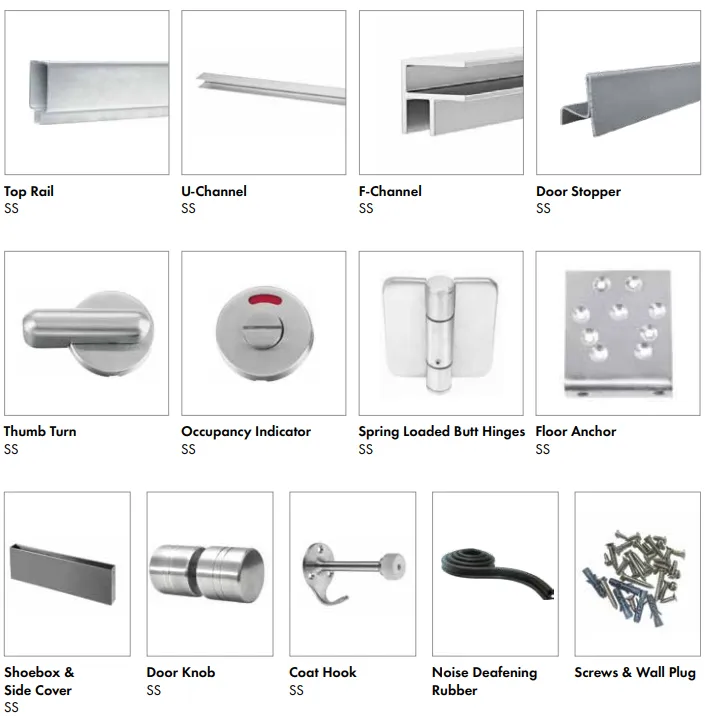

Profile (Aluminium Anodized grade -
6063 - TS/6 grade silver coating of 70 micron aluminuim)
1. Aluminium Semi-spherical (Top) head frame structure for surface protection.
2. Aluminium Corner joinery (F-Channel) section.
3. Aluminium U-Channel Wall joinery section.
4. Aluminium Door stopper section.
Hardware (Made from SS316)
1. Adjustable Palm Design Pedestal Footing of base diameter 60 mm made from stainless steel grade 316 giving a clearance height of 150 mm. Surface finish to be lacquer/brush type.
2. Spring loaded butt hinges made from stainless steel grade 316. Surface finish to be matt type. Covers to be lacquer/bruch coated.
3. Coat hook with rubber stopper made from stainless steel grade 316. Surface finish to be lacquer/brush type.
4. Round Door knob diameter 38 mm with grooves for better hand grip made from stainless steel grade 316. Surface finish to be lacquer/brush type.
5. Rotating thumb-turn locking system with privacy indicator made from stainless steel grade 316. Surface finish to be lacquer/brush type.
|
NYLON ONEX SERIES CUBICLES: STD.
SIZES
((W x D x H): 900 mm x 1500 mm x 2003 mm, (Height is including 150 mm gap from bottom) Door Width - 610 mm |
