About Us

As a brand. "CubiQ" stands as a market leader and trusted name in modern restroom solutions. With 30 years of industry experience. we specialise in providing state-of-the-art Restroom Cubicles, Lockers, Urinal privacy panels, and Exterior claddings, seamlessly combining durability with aesthetic appeal.

Onex

Restroom Cubicles
Onex

Onex Restroom Manufacturer

Onex by CubiQ is a modern, floor-mounted restroom cubicle system supported by top rail and durable, adjustable Nylon PA-6 legs (100–150 mm clearance). Designed for high-traffic areas, it offers excellent strength, easy maintenance, and lightweight installation. All essential accessories—like occupancy indicators and legs—are made from impact-resistant nylon, available in black, grey, and white. Onex is both budget-friendly and high-performing, available in a wide range of colors and patterns, making it an ideal choice for commercial, institutional, and public restrooms looking for an affordable yet full-featured cubicle solution.

Get Best Deal

Description
Hardware & Accessories
Technical Specification
Download Brochure

The Onex series is a testament to our commitment to providing cost-effective yet high-quality restroom solutions. Designed for environments with heavy footfall, Onex combines lightweight construction with strong materials to make sure longevity and ease of maintenance. Aluminium made door stopper profiles, with rubber linings for dampening the noise while door closing, will be provided at the vertical ends of the pilasters.

Door Stopping Mechanism

Aluminium made door stopper profiles, with rubber linings for dampening the noise while door closing, will be provided at the vertical ends of the pilasters.

Dimensions

Width	Width Disabled	Door Width	Door Width Disabled	Depth	Total Height from Ground	Bottom Gap
900	1500	610	900	1500-1800	1995-2003	100-150

“CubiQ” Restroom Cubiles – Detail Specification
SCOPE OF WORK Supply and installation of “CubiQ” - Onex series cubicles of width and depth as per specifications/site drawings.
ITEM DESCRIPTION Made from solid grade High Pressure Laminate (HPL) compact panel as per IS:2046 and EN438- NEMA LD3 - 2005, Green label and CE Green Guard Certification and manufactured under high specific pressure > 5 MPa and temperature 120°C with bunch of kraft papers, impregnated with thermosetting phenolic resin and decorative papers made of cellulose fiber, impregnated with thermosetting melamine resin which provide superior anti bacterial, heat, abrasion, chemical, scratch, impact, graffiti and moisture resistance properties.. Panels have a black core which presents a distinctive black edge.
DOORS All doors will be of single colour and made of 12 mm thick HPL compact panel. Each door will be supported by 3 stainless steel made hinges affixed to the pilasters. Nylon made coat hook and door knob are provided with each door.
PILASTERS All pilasters will be made of 12 mm thick HPL compact panel and completed with stainless steel thumb-turn lock set (comprised of thumb-turn and occupancy indicator). Aluminium door stopper profiles with rubber linings for dampening the noise while door closing will be provided at the vertical ends of the pilasters. Pilaster will be anchored to the floor using nylon made adjustable legs. The bottom gap is 150mm
DIVIDERS All intermediate partitions or dividers will be made of 12 mm thick HPL compact laminate panels. They are affixed with Aluminium made U-channel at their ends for ultimate stability of the system. Design No. as specified by Arch./Engr. in suede finish. Size of panels to be as per drawing.

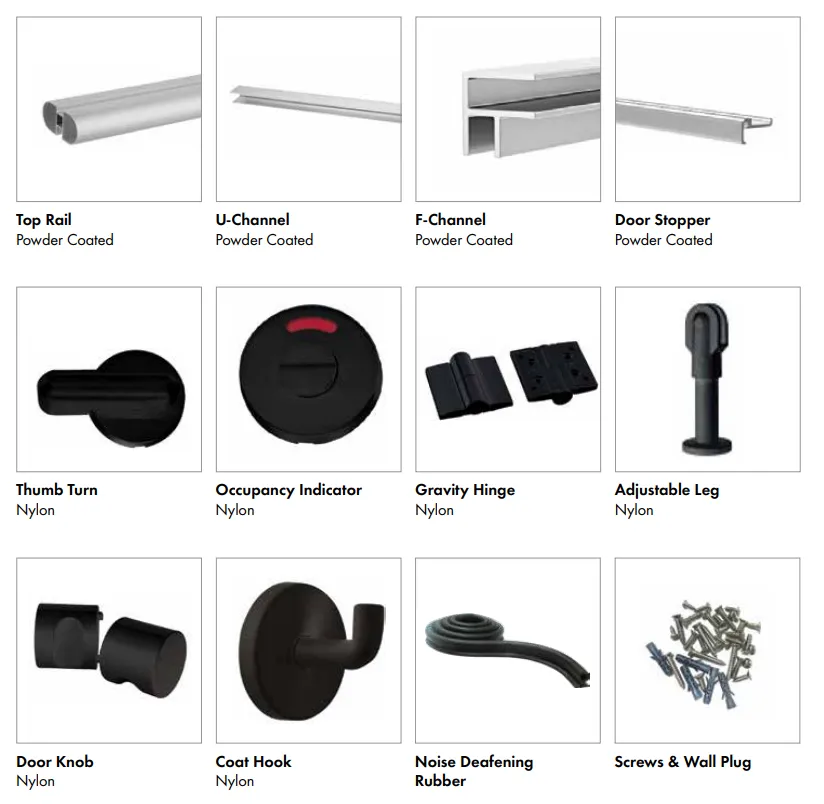

Profile (Aluminium Anodized grade - 6063 - TS/6 grade silver coating of 70 micron aluminuim) 1. Aluminium Semi-spherical (Top) head frame structure for surface protection. 2. Aluminium Corner joinery (F-Channel) section. 3. Aluminium U-Channel Wall joinery section. 4. Aluminium Door stopper section. Hardware (Made from SS316) 1. Nylon Polyamide grade 6 adjustable pedestal footing of base minimum diameter 70 mm, giving a clearance height of min 150 mm. 2. Self closing hinges (gravity mechanism) made from nylon polyamide grade 6. 3. Round Coat hook with base diameter 53 mm made from nylon polyamide grade 6. 4. Round Door knob diameter 52 mm with thumb-recess made from Nylon polyamide grade 6. 5. Rotating thumb-turn locking system with privacy indicator locking system made from Nylon polyamide grade 6. Accessories 1. Anti-noise rubber padding. 2. SS grade 304 screws. 3. Anti-rotation nylon polyamide grade 6 expandable wall plugs.
NYLON ONEX SERIES CUBICLES: STD. SIZES ((W x D x H): 900 mm x 1500 mm x 2003 mm, (Height is including 150 mm gap from bottom) Door Width - 610 mm

Download Brochure

Technical & Innovation-Oriented

Scratch Resistant

Graffiti Resistant

Termite Resistant

Water Resistant

Easy to Clean

Impact Resistant

Anti-Bacterial

Cigarette Burn Resistant

Fire Resistant

Abrasion Resistant

Wide Choice of Colours

Chemical Resistant

Flexibility of Design and Space Saving

Fast Colours and Durable

Less Volatile Organic Compounds (VOC) Emission

Why Choose CubiQ?

Customization

Durability

Aesthetic Appeal

Competitive Pricing
