SCOPE OF WORK
Supply and installation of Crown Qbiss Silvera series cubicles of width and depth as per specifications/site drawings. Cubicle height will be 1980 mm. |
ITEM DESCRIPTION
Made from solid grade compact high 5 MPa and temperature 120°C with a bunch of kraft papers, impregnated with thermosetting phenolic resin and decorative papers made of cellulose fiber, impregnated with thermosetting melamine resin which provides superior anti bacterial, heat, abrasion, chemical, scratch, impact, graffiti and moisture resistance properties. Panels have a black core which presents a distinctive black edge. Size of panels to be as per drawing. Design No. as specified by Arch./Engr. in suede finish. |
DOORS
All doors will be of single colour and made of 12 mm thick HPL compact panel. Each door will be
supported by 3 stainless steel made hinges affixed to the pilasters. Nylon made coat hook and door knob
are provided with each door. |
PILASTERS
All pilasters will be made of 12 mm thick HPL compact panel and completed with stainless steel
thumb-turn lock set (comprised of thumb-turn and occupancy indicator). Aluminium door stopper profiles
with rubber linings for dampening the noise while door closing will be provided at the vertical ends of
the pilasters. Pilaster will be anchored to the floor using nylon made adjustable legs. The bottom gap
is 150mm |
DIVIDERS
All intermediate partitions or dividers will be made of 12 mm thick HPL compact laminate panels. They
are affixed with Aluminium made U-channel at their ends for ultimate stability of the system. Design No.
as specified by Arch./Engr. in suede finish. Size of panels to be as per drawing. |

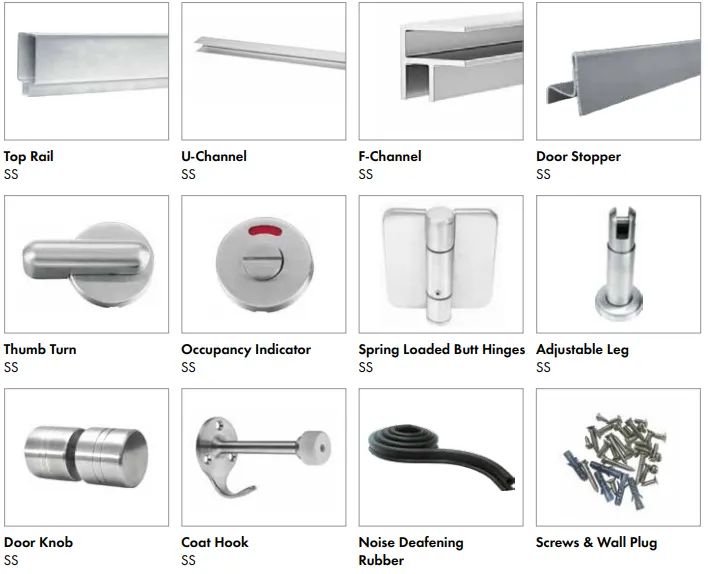

HARDWARE AND ACCESSORIES
1. Top rail is made of stainless steel grade 304 with a rectangular cross section. Surface finish will be brush type. A thin plastic film is pasted for surface protection.
2. Corner joinery (F-Channel) section made from stainless steel grade 304. Surface finish to be brush type. A thin plastic film is pasted for surface protection.
3. Wall joinery (U-Channel) section with hamming profile made from stainless steel grade 304. Surface finish to be brush type. A thin plastic film is pasted for surface protection.
4. Door Stopper section with hamming profile made from stainless steel grade 304. Surface finish to be brush type. A thin plastic film is pasted for surface protection.
5. Adjustable Pedestal Footing of base diameter 60 mm made from stainless steel grade 316 giving an adjustable height of 100 mm to 150 mm. Surface finish to be lacquer / brush type.
6. Spring loaded butt hinges made from stainless steel grade 304. Surface finish to be matt type. Covers to be lacquer / brush coated.
7. Coat hook with rubber stopper made from stainless steel grade 304. Surface finish to be lacquer / brush type. • Round Door knob diameter 38 mm with grooves for better hand grip made from stainless steel grade 304. Surface finish to be lacquer / brush type.
8. Rotating thumb-turn locking system with privacy indicator made from stainless steel grade 304. Surface finish to be lacquer / brush type.
9. Anti-noise rubber lining of thickness 2 mm and width 10 mm
10. SS grade 304 screws.
11. Anti-rotation nylon polyamide grade 6 expandable wall plugs.
12. The work shall complete as per drawing , under supervision of engineer in-charge and company experts.
|
SILVERA SERIES CUBICLES: STD. SIZES
(W x D x H): 900 mm x 1500 mm x 1980 mm, (Height is including 150 mm gap from bottom) Door Width - 610 mm |
